Laminate Z Locker

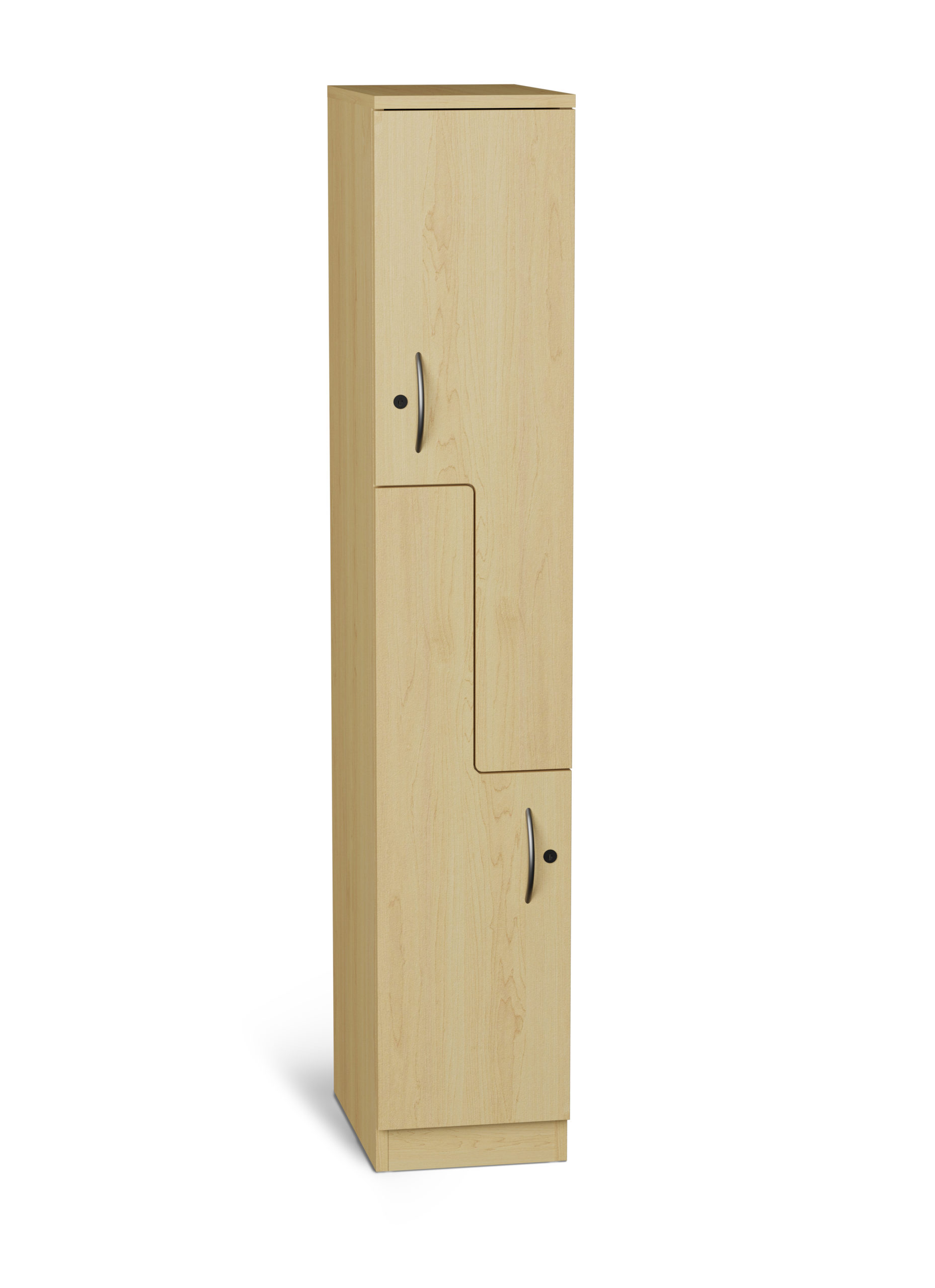

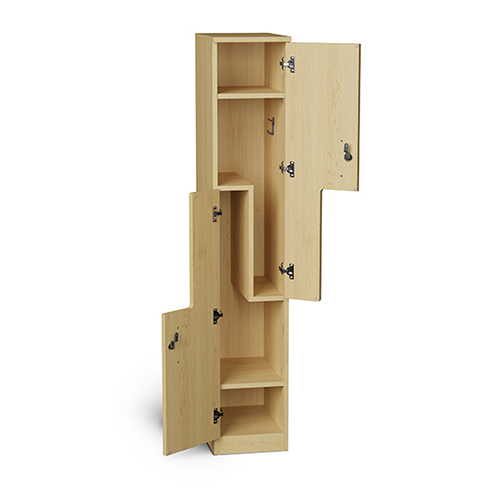

Great Openings laminate Z lockers provide multiple height storage tiers within a single locker. The “Z” design allows for garment hanging or larger personal items and shelf storage while still maximizing the available foot print.

$3,039.00$3,933.00

Configure this product

Clear
Add to Projects
Add to Projects
Share This Product

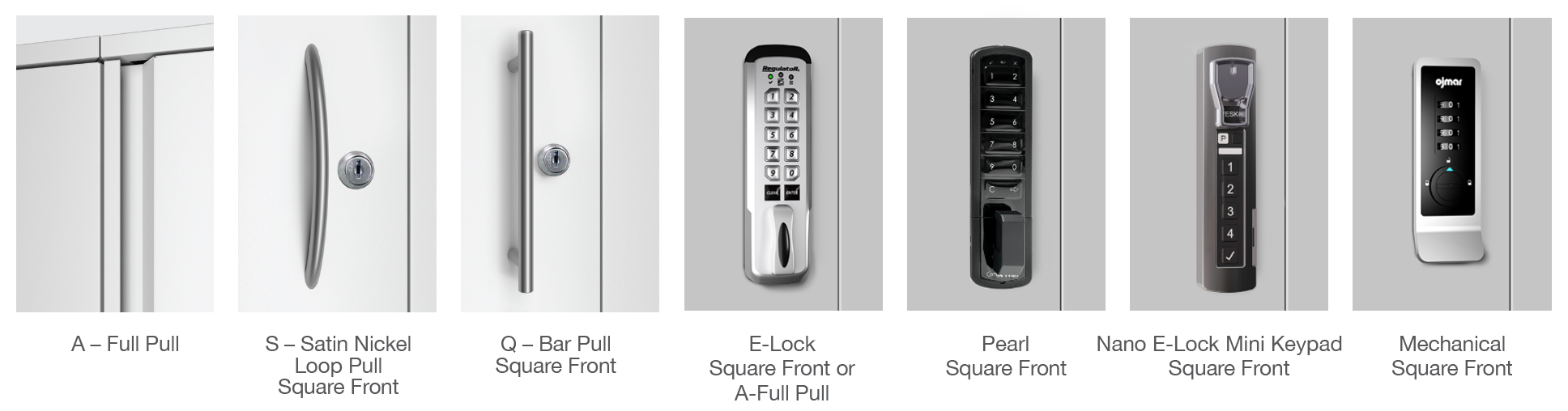

Available Fronts

Available Colors/Finishes

Choose from 72 standard colors, all at standard price and lead time.

Dimensions

Available Locks

Features

  • Multiple color door order forms make it easy to mix and match door colors
  • Include adjustable shelves
  • Doors hinge left and right
  • Each locker compartment includes a two-pronged coat hook
  • The two locker doors are keyed randomly in the factory

Options and Accessories

  • Choose from keyed locks, electronic locks, or hasp locks
  • Peel-and-stick door number plates .030 acrylic 1″ h x 2″w, surface color in brushed aluminum imprinted in black with any combination of numbers needed to permanently identify individual locker doors
  • Common laminate tops
  • Locker ganging kit, for ganging lockers side-to-side

Lock Systems

  • Lockers come standard with randomly assigned UM Series locks (#226-425).
  • UM locks are black-faced, master-keyed and core-removable
  • You may arrange with customer service to have these locks keyed-alike in the field
  • Other key series options are available, including bright nickel LL, Haworth SL

Basic Construction

  • A 12-year warranty ensures long-lasting performance and after-sale support
  • Leveling glides allow for 7/8″ adjustment and are accessible from inside the locker

Electronic Lock

E-Lock (E)

  • Durable and versatile, electronic locks may be programmed to either fixed or revolving mode
  • Once a code is entered, the lock is activated by turning the lever to the locked or unlocked position
  • Runs on (2) AAA batteries (included)
  • Operates using a 4-to-8 digit code
  • A supervisor code is included – For large projects, the supervisor code may be pre-programmed into the locks
  • Includes programmable reset features
  • Easy to clean membrane keypad
  • 75,000 plus cycles; extended battery life reduces replacement and labor maintenance costs
  • 1 year warranty

E-Lock Mini Keypad (VM)

  • Keypad operation
  • Cam locking mechanism
  • Manage with electronic keys
  • Dual functionality – shared or assigned use
  • Management override and power bypass
  • All metal housing with brushed nickel finish
  • Vertical orientation – knob on the top
  • Visual and audible indicators
  • Available with advanced features:  Mobile app management, Audit trail, Advanced auto unlock feature, Advanced system tools
  • IP55 rated, FCC, CE, and CI certified , ADA compliant models available
  • Powered by 2 lithium CR2032 batteries (included), Battery Life: 180,000 cycles with average use
  • 2 year warranty

E-Lock Mini RFID (RM)

    • Touch RFID operation
    • RFID standards – iClass and Mifare (13.56 MHz) ISO 14443A, ISO 14443B, ISO 15693
    • Cam locking mechanism
    • Manage with electronic keys, shared or assigned use
    • Management override and power bypass
    • All metal housing with brushed nickel finish
    • Vertical orientation knob on the top
    • Visual and audible indicators
    • Available with advanced features: Mobile app management, Audit trail, Advanced auto unlock feature, Advanced system tools
    • IP55 rated, FCC, CE, and CI certified
    • ADA compliant models available
    • Powered by 4 premium AA batteries (included), Battery Life: 115,000 cycles with average use
    • 2 year warranty

Hasp Locks

  • To order, specify “Hasp Lock” in the product description on your purchase order and add $50 list per door to the keyed locker price

Additional information

Height

65-7/8"

Depth

18"

Upper Hinge Location

Left, Right

Front

E. Integrated Lock Pull, Q. Bar Pull, S. Satin Nickel Pull

Select a Lock

UM Series, LL Series, SL Series, K Series, E-Lock, E-Lock Mini Keypad (E. Integrated Lock Pull Only), E-Lock Mini RFID (E. Integrated Lock Pull Only), Hasp

Laminate

B4B4 Bleached Legno, BCBC Biltmore Cherry, BGBG Brighton Walnut, BKBK Black, DMGH Slate Grey, DWDW Designer White, DZDZ Desert Zephyr, FGFG Fashion Grey, GYGY Grey Mesh, KMKM Kensington Maple, NNNN Neutral Twill, RHRH River Cherry, S8S8 Sarum Twill, SGSG Shadow, SLSL Steel Mesh, WCWC Wild Cherry
