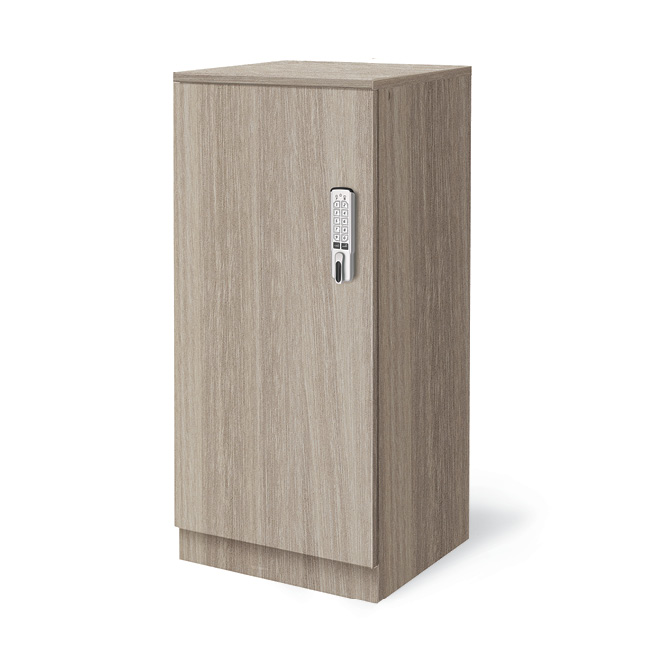

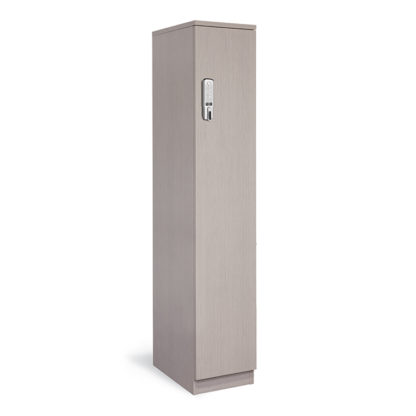

Laminate Single Lockers

• Multiple color door order forms make it easy to mix and match door colors

• Additional shelves are available for order

• 51-3/8″ and 65-7/8″ high lockers include one adjustable shelf on top, with up to 12″ clear height above the shelf

• 39-7/8″ high lockers do not include any shelves

• 27-3/4″ high lockers include one adjustable shelf, but no coat rod or hooks

• The 18″ deep lockers include (2) two-pronged coat hooks, one on each side. The 24″ deep lockers include (1) side-to-side coat rod

• Choose from keyed locks, electronic locks, or hasp locks

• Peel-and-stick door number plates .030 acrylic 1″ h x 2″w, surface color in brushed aluminum imprinted in black with any combination of numbers needed to permanently identify individual locker doors

• Common laminate tops

• Locker ganging kit, for ganging lockers side-to-side

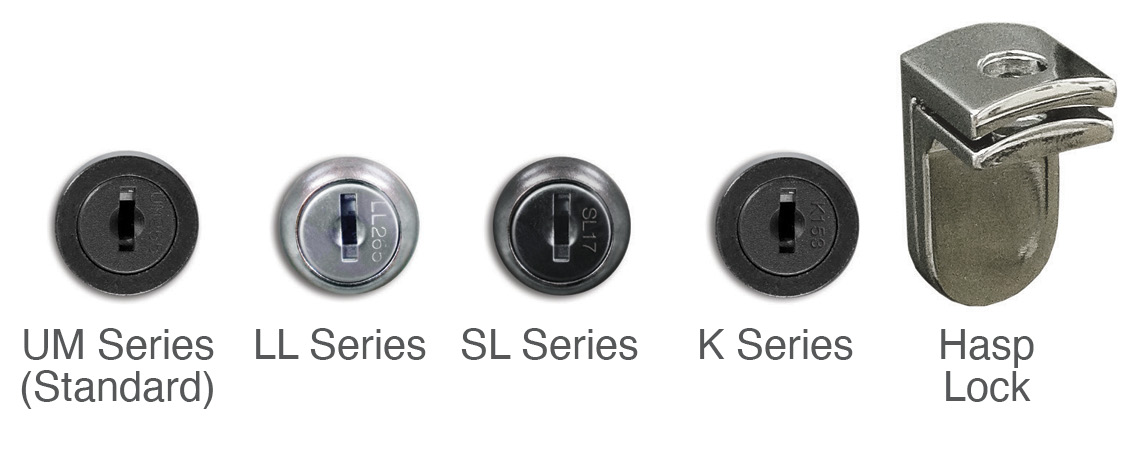

• Lockers come standard with randomly assigned UM Series lockers (#226-425).

• UM locks are black-faced, master-keyed and core-removable

• You may arrange with Customer Service to have these locks keyed-alike in the field

• Other key series options are available, including bright nickel LL, Haworth SL

• A 12 year warranty ensures long-lasting performance and after-sale support

• Leveling glides allow for 7/8″ adjustment and are accessible from inside the locker

• Hasp locks may be used instead of a keyed or electronic lock

• To order, specify “Hasp Lock” in the product description on your purchase order and add $50 list per door to the keyed locker price

E-Lock (E)

• Durable and versatile, electronic locks may be programmed to either fixed or revolving mode
• Fixed Mode: Once a code is created, that code remains in effect until the user changes it. To lock and unlock, simply enter the code and then turn the lever
• Revolving Mode: Also called hoteling or single use mode, the code is cleared after each complete locking cycle. To lock: enter a code and then turn the lever. To unlock: enter the same code and turn the lever. At this point the lock clears the code and is awaiting new input
• Electronic Lock Features:
  • Once a code is entered, the lock is activated by turning the lever to the locked or unlocked position
  • Runs on (2) AAA batteries (included) – Operates using a 4-to-8 digit code
  • A supervisor code is included
  • For large projects, the supervisor code may be pre-programmed into the locks
  • May be programmed by the supervisor as Fixed or Revolving Code
  • Includes programmable reset features
  • Easy to clean membrane keypad
  • 75,000 plus cycles; extended battery life reduces replacement and labor maintenance costs
• 1 year warranty

E-Lock Mini Keypad (VM)

• Keypad operation
• Cam locking mechanism
• Manage with electronic keys
• Dual functionality – shared or assigned use
• Management override and power bypass
• All metal housing
• Brushed nickel finish
• Vertical orientation – knob on the top
• Visual and audible indicators
• Available with advanced features*
  • Mobile app management
  • Audit trail
  • Advanced auto unlock feature
  • Advanced system tools
• IP55 rated, FCC, CE, and CI certified
• ADA compliant models available
• Powered by 2 lithium CR2450 batteries
• Battery Life: 180,000 cycles with average use
• 2 year warranty

E-Lock Mini RFID (RM)

• Touch RFID operation
• RFID standards – iClass and Mifare (13.56 MHz) ISO 14443A • ISO 14443B • ISO 15693
• Cam locking mechanism
• Manage with electronic keys
• Shared or assigned use
• Management override and power bypass
• All metal housing
• Brushed nickel finish
• Vertical orientation knob on the top
• Visual and audible indicators
• Available with advanced features*
  • Mobile app management
  • Audit trail
  • Advanced auto unlock feature
  • Advanced system tools
• IP55 rated, FCC, CE, and CI certified
• ADA compliant models available
• Powered by 4 premium AA batteries
• Battery Life: 115,000 cycles with average use
• 2 year warranty

• Plug and play components
• Preconfigured kits for easy ordering
• 110v plug in feed for up to 8 lockers
• Total 25W power output
• Intelligent USB Type C with Power Delivery
• Reversible USB Type A with Fast Charge
• Internal overload protection
• LED Power Delivery indication
